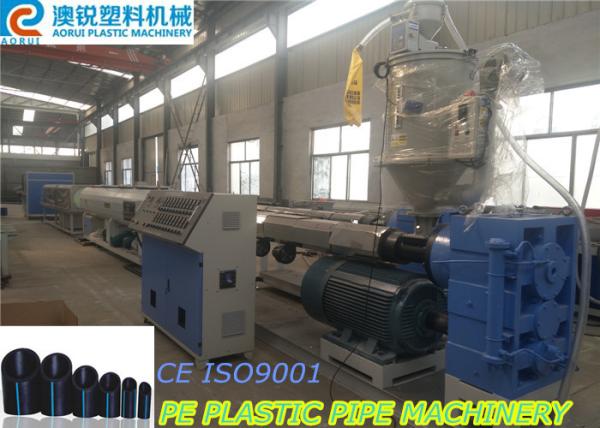

PE HDPE Plastic Pipe Extrusion Line , PPR Pipe Production Line

Polyethylene Pipe Extrusion Progress , Plastic Pipe Extrusion Machine In China

Brief introduction of PE pipe plastic extrusion machine:

1.The cost of the pe pipe plastic extruder machine, there are many factors involved that effect the price.However, depending on the part complexity and raw materials, usually one complete set of pe pipe extruding machine need about twenty thousand dollors to thirty thousand dollors.

2.A pipe extrusion line consists of a number of pieces of euipment, Usually pe pipe extruder consusts of spring feeding system, extruder, mould, water vacuum tank, traction machine, cutting machine, stacker.

3.An extruder converts the polyethylene raw material to a continuous tubular melt by extrusion through an annular die. The molten pipe then proceeds through a sizing or calibration device (which fixes its dimensions) to a cooling trough.

Description of pe pipe production line:
1.The hdpe/ldpe pipe extrusion machine produced by our company has specical structure, high automatic, easy to operation and production stable.

2.Extruder:Adopt high effective single screw extruder, the screw adopts an integrated mixing element with a barrier and mixing head, the barrel adopt new tyoe of opening drum, equipped with low noise air fan, ceramic heat ring, high speed hard tooth surface reduce box, to ensure the high speed and high performance extrusion.

3.Mark line extruder:Pipe mark line is produced by one set sj30 single screw extruder through composite mould extrusion.
4.Extrusion mould:Mould material is high quality stell 40 Cr,adopt international advanced spring mode or basket mould technique, it has stable extrusion, adopt water film lubrication and water ring cooling, to adopt PE material performance, to ensure the stability of diameter and roundness druing high speed production of thick-walled tubes.

5.Vacuum sizing water tank:It adopt high quality high hardness stainless steel board, advance water recycle and high pressure cooling system, vacuum degree regulating device and precise water level control system, the precise copper sizing sleeve has features of fast cooling speed and fast setting speed.It can realize three dimention adjustment.

6.Water spray tank:The tank material is stainless steel, the cover is pvc soft curtain, stainless steel float ball used to adjust water level.

7.Traction machine:According to different pipe diameter and pipe wall thickness equipped with different double belt, three claw, four claw, five claw, and six claw tractor.Our machine adopt frequency inverter.It has PLC control.

8.Cutting machine:Chipless automatic cutting machine, the cutting section is smooth,Adopt frequency control synchronous drive, high precision, low noise. The large-diameter pipe adopts automatic planetary cutting machine, synchronizing with the production line, and the position and cutting depth of the saw blade can be flexibly adjusted to ensure the reliability of the cutting saw.

Technical Parameters of pe pipe extruder:

Applications:

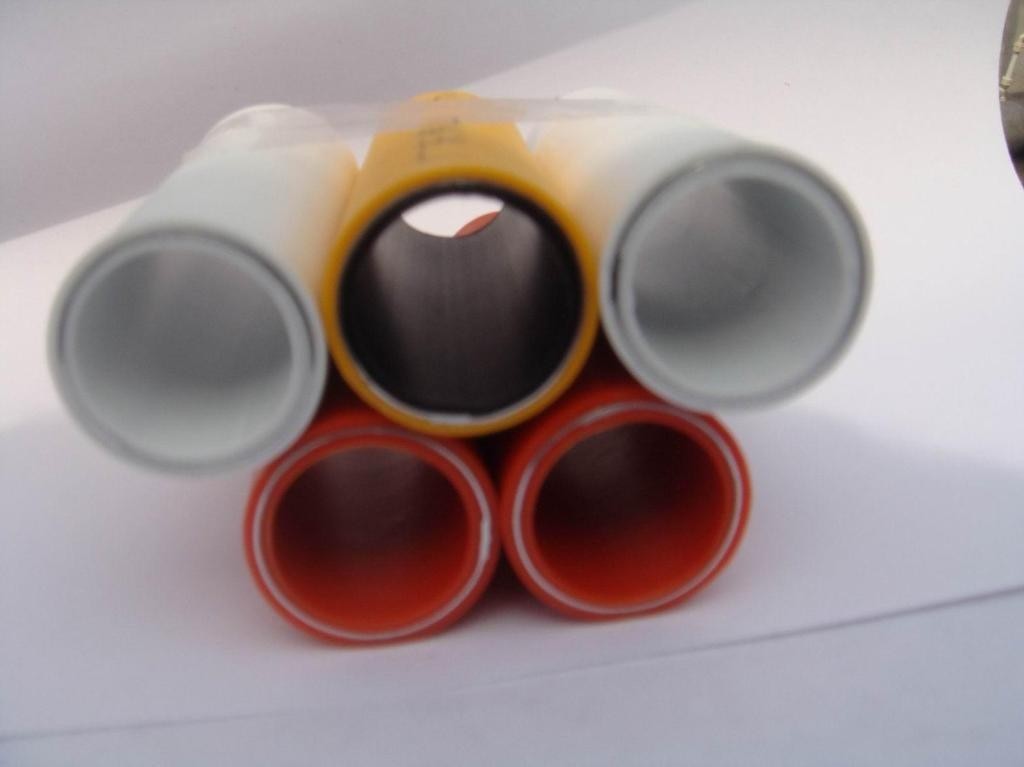

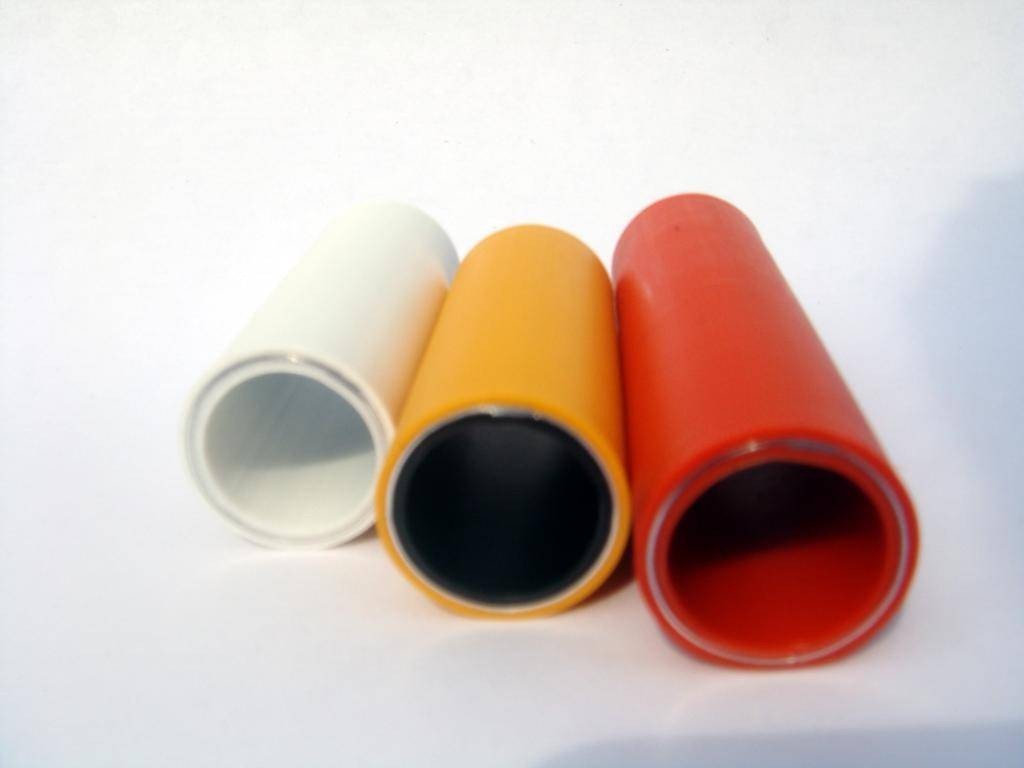

PE Series plastic pipe main used for agricultural, building drainage and sewage aspect.It is also use to cold and hot city water pipes and running pipes of acid, alkali, salt, other kinds of liquids, fuel gas, oxygen and compressed air etc.

Competitive Advantage:

Low cost per part.

Flexibility of operation.

In hot extrusion, post execution alterations are easy because product is still in heated condition.

Continuous operation.

High production volumes.

Many types of raw materials can be used.

Good mixing (Compounding)

Surface finish obtained is good

Customer show:

plastic pipe extruder machine

plastic pipe extrusion machine
