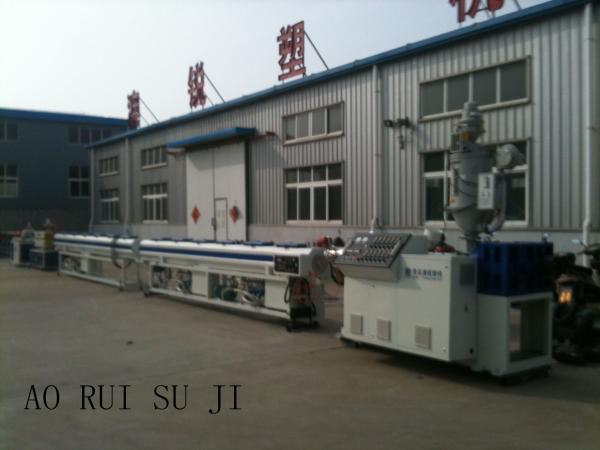

HDPE Cable Plastic Pipe Extrusion Line for Water , PP Drainage Pipe Plastic Extruder
Quick detail:
1. material:PP/PE/HDPE/LDPE
2. used in algericultural,etc
3. pipe size is according to customer's requirement.
Description:
Features: Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production.
Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system.
Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.
Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.
Specifications:
|
Diameter Scope
|
4.5-9
|
9-32
|
32-50
|
|
Main Extruder
|
SJ-30
|
SJ-45
|
SJ-65
|
|
L/D
|
30:1
|
30:1
|
30:1
|
|
Output kg/h
|
10
|
40
|
80
|
|
Main Motor Power kw
|
4
|
11
|
18.5
|
|
Corrugator Power kw
|
1.1
|
1.5
|
1.5
|
|
Mould Block Pairs
|
42
|
44
|
44
|
|
Cooling Type
|
Water and air cooling
|
|
Linear Speed (m/min)
|
6-10
|
8-12
|
8-15
|
|
Counting Type
|
Sensing counting
|
|
Winding Type
|
Automatic/Manual
|
Applications:
1, The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.
2, Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.
4, Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.
Competitive Advantage:
1. high capacity
2. energy-saving
3. low noise
4. smooth operation
