WPC Plastic Board Extrusion Line / WPC Foam Board Making Machine
Quick detail:
1. WPC Foam board machine adopts WPC sepcialized twin/single screw extruder, and it can be equipped with auxiliary machines like corresponding vacuum forming table, haul-off, transverse cutter and stirring up platform.
2. WPC Furniture/ Construction Template Board Extrusion machinecan make various WPC products by changing mould with diffferent specification. With the unique technology of our company, haul-off gain stable performance and strong traction force. In order to meet the wide size characteristics of door plate, special large sized swirl cooling system is used in vacuum forming.
Description:
1. wpc board: it has such characteristics as high impact resistance , high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermoform , etc.
2. PVC Foam Board that produced by PVC Foam Board Machine could be widely used in building, kithchen, furniture, advertisement, office etc.. PVC Foam Board provided by Qingdao AORUI environmental friendly, recyclable for almost 100%, incombustible and safe for using & drilling, sawing, nail, planning, bonding can be conducted like timber material.
3. Below are detailed specifications of PVC WPC Foam Bord Machine:
1).SJSZ 80/156 Conical twin Screw Extruder
ABB frequency converter, SIEMENS contactor, OMRON Japan, Motor power:75KW
2).Calibration unit
Calibration plate:1500mm×500mm 4couples
3). Cooling tank and bracket
Length:6000mm
Trimming knife:3 sets
4). Haul-off unit
8 couples
Cylinder clamping and loosening
5). Cutting unit
6). Stacker
7). Mould (T-Die )
Applications:
1. The WPC production line uses PVC,PP,PE resin or recycled plastic and plant fiber(wood powder,chaff,straw,etc)as raw material.
2. The wood plastic products are widely used in outdoor floor,close to water construction,balcony,landscape architecture,chairs and benchese,fence,interior doors and windows,furniture,etc.
Main technical parameters:
| Model | SJZ-180 | SJZ-240 | SJZ-300 | SJZ-350 | SJZ-400 | SJZ-600 | SJZ-800 | SJZ-1000 |
| Max. width of products (mm) | 180 | 240 | 300 | 350 | 400 | 600 | 800 | 1000 |
| Main extruder | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 350 | 400 | 400 | 600 |
| Main motor power (kw) | 18.5 | 37 | 37 | 37 | 55 | 55 | 55 | 110 |
Competitive Advantage:
1.good after-service
2.spare parts are free
3.guarantee:one year or according to customer’s requirement.
4.advanced technology and best quality
5.international certification standard.
6.our engineer help and teach customer to test the machine.
Customer visit our factory:
Product Tags:
|
|

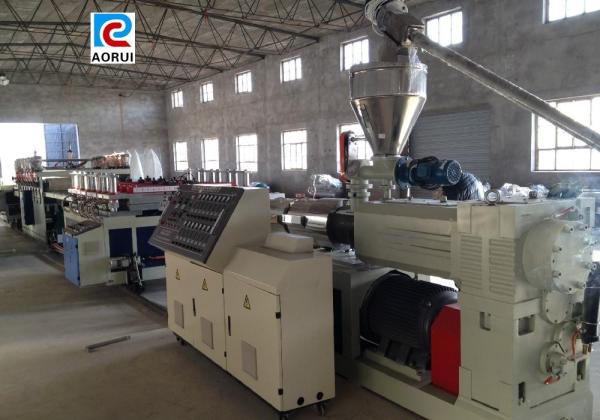

High Speed PVC WPC Plastic Board Extrusion Line With Siemens Motor Images
|
