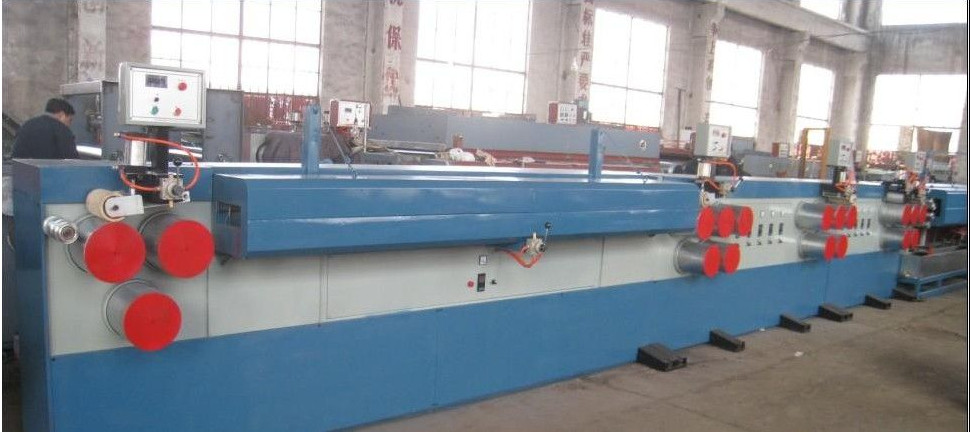

SIngle Screw Strapping Band Machine . Automatic PP Strapping Brand Machine Bule / Yellow
Quick detail:
1. With 100% bottle flakes recycled material to produce directly, 30% reduction in the cost of production
2. The drying system designed specially, according to PET molecular chain structure, uniform drying, crystallization viscosity, produce strap with high tensile strength, no split crack
3. Shaping oven, eliminate prestress, no bend, uniform size, achieve automatic packing level
4. Easy operation, convenient maintenance, the labor and the electricity cost is low
Description:
1.PET strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market. They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel and so on.
2.Adopts advanced dehumidify dryer system. It makes sure the material humidity at 80PPM at 50PPM dew point. Meanwhile, it compact material and increase the viscidity.
3.Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material drying continuously.
Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw is suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
The main technique parameter
| Model | SDD65 | SDD80 | SDD45/65 | SDD45/80 | SDD/80 |
| Extruder diameter(mm) | 65 | 80 | 45/65 | 45/80 | 80 |
| Productivity(kg/h) | 20-35 | 20-35 | 30-60 | 30-80 | 30-60 |
| Winding mode | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual |
| Haul off multiple | 5-10 | 5-10 | 3-5 | 3-5 | 6-10 |
| Weight(kg) | 28 | 40 | 46 | 56 | 50 |
| Production line length(m) | 12x2.8x1.6 | 14x2.8x1.6 | 12x3.8x1.6 | 15x3.8x1.6 | 18x3.2x1.6 |
| Product specifications(mm) | 10-22 | 10-22 | 10-22 | 10-22 | 10-22 |
| Total weight(t) | 2 | 2.6 | 3 | 3.8 | 3.6 |
Application:
PET strap band has high stretching quality, resist high temperature. It is mainly suitable for package. Its advantages are strong pulling force, good extension, rust resistance, lighter density, convenient operation, safe, reliable and cheap price, etc.
Competitive Advantage:
1. CE ISO certification
2. good after sales service
3. reasonable price
