PE Single Wall Corrugated Hose / Pipe Extrusion Line , Plastic Corrugated Pipe Production Line / Extruder
Quick detail:
1. Application of plastic single wall corrugated pipe machine :
this machine is used to produce PE PP PVC single wall corrugated pipe which are widely used as electric conduit, drain water pipe for clothing washer and so on. And, this machine can also automatically insert steel wire into corrugated pipe.
2. Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder
Description:

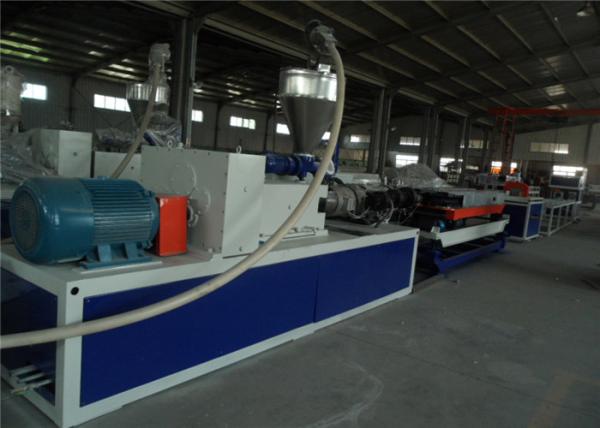

1. It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
2. Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
3. The machine is used for producing exact small dia. Single wall corrugated pipe whose material is PP, PE, PA and so on. It is a new product designed by ourselves on the basis of experience of producing pipe machinery many years and exporting overseas advanced technology.
4. It fills industry blank of pipe. Small dia. Single wall corrugated pipe has such features as smooth pipe wall, symmetrical corrugation and so on because of particular forming technics and forming moulds. It is widely used for cable pipe, protect pipe of car and train, supply and drainage pipe of washer, irrigation of farm and so on.
Specifications:
| Model | Pipe Diameter (mm) | Motor Power | Speed (m/min) | Max .Output (kg/h) | Total Power |
| SJ-45/30 | 5-15 | 15 | 1-20 | 45 | 35 |
| SJ-50/30 | 16-32 | 18.5 | 1-15 | 90 | 55 |
| SJ-65/30 | 40-63 | 37 | 1-10 | 120 | 70 |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
Product Tags:
|
|
Plastic Corrugated Pipe Production Line Extruder PE Single Wall Corrugated Hose Making Machine Images
|
