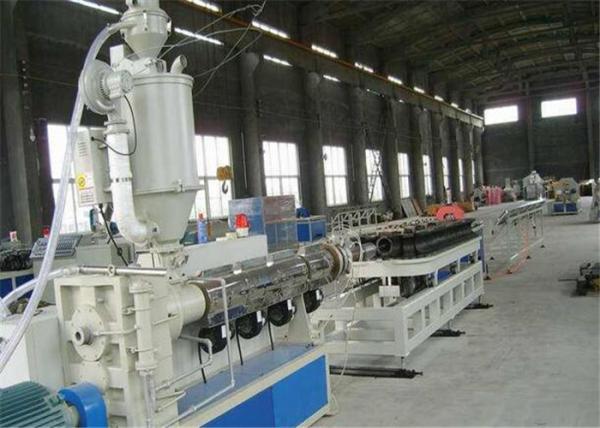

Single Screw High Output Corrugated Pipe Machine / Plastic Pipe Extrusion Line
Quick detail:
Features of single wall corrugated pipe machine:
1,Equipped with two high-efficient single screw extruders and notching machine barrel to ensure effective extrusion of different materials for two walls.
2,Highly effective cooling system can ensure high speed production in continuity.
3,Nitrogen treated moulds and adjustable wall thickness device can ensure production with different materials and HG degree.
4,Corrugated moulds are made of precisely casted special alloys which can provide high precision and pressure resistance as well as good heat elimination effects.
Description:
1. This machine is utilized to produce PE PP PVC single wall corrugated pipe which are widely used as electric conduit, drain water pipe for clothing washer and so on. Single wall corrugated pipe both inside and outside surface are corrugated, the wall thickness is small. So this kind of pipe can reduce cost than solid pipe. And, this machine can also automatically insert steel wire into corrugated pipe.
2. This series single wall corrugated pipe machine can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
3. Features of PE/PP Single Wall Corrugated Pipe Production Line:
1) Adopt Electric-magnetic heater which can save 40% to 60% electric energy.
2) All electric parts (breaker/relay/ inverter) are SIEMENS/SCHNEIDER/OMRON
3) PLC control and simple operation
4) the forming machine has 38 pairs to 72 pairs forming block.
5) Production speed is 15m/min to 25m/min.
Specifications:
| Item | Parameter |
| Extruder | SJ45 single screw extruder | SJ65 single screw extruder |
| Pair of Mold Block | 42 | 50 |
| Pipe State | Single wall corrugated pipe | Single wall corrugated pipe |
| pipe diameter | 12-50mm | 50-110mm |
| Drawing Speed | 3~12m/min | 1-6m/min |
| Mold Block Cooling Mode | Wind cooling | Wind cooling |
| Pipe Cooling Mode | Wind cooling | Wind cooling |
| Wind Cooling Power | 0.5×2KW | 0.5×3KW |
| Main Machine Power | 15-18.5KW | 30-55KW |
| Power of Auxiliary Machine | 2.2KW | 5KW |
| Weight | 2500kg | 3600kg |
| Dimension | 7500mm×1600mm×1700mm(L×W×H) | 9500mm×2000mm×1700mm(L×W×H) |
Applications:
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Competitive Advantage:
24 hours services;
Overseas installation;
Free operation training and technology formula transfer;
Old machine update;
Spare parts and maintenance with reasonable cost price.
