PP PET Strap Band Extrusion Machine , Plastic Wrapping Band Making Machine
Quick detail:
1. Single screw or twin screw technique for option depending on the requirement.
2. 100% recycled flakes can be used for production.
3. Even plasticization and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production.
4. the filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:

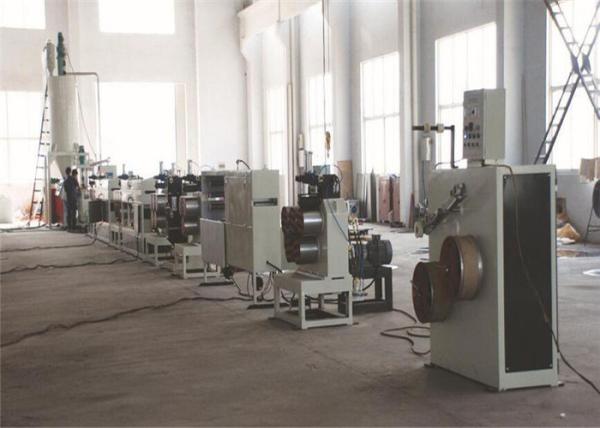

1. pp strap manufacturing machine is composed of forced extruder (main machine), cooling tank,1st stretching unit,wind heat stretching oven,2ND stretching unit,character printer, embossing machine, light-heat shaping oven, water tank for shaping, 3rd stretching unit and light weight curler.The standard installation shall be in line and in order, and the technological process of the machine as shown in following figure.
2. PP strap with the main material is polypropylene resin, drawing class, because of its plasticity, fracture tensile strength, bending resistance, light weight, easy to use, etc., are processed into the banding has been widely role in various fields.
3. Special twin screw extrusion technology and single screw extrusion technology, can be choose as per customer needs. Process 100% recycled PET bottle flakes.
Technological parameter:
| Strapping diameter | 6-32mm |
| Screw diameter | 65 |
| L/D | 34:1 |
| Screw material | 38CrMoAlA |
| Barrel material | 38CrMoAlA |
| Barrel heating | Casting aluminum |
| Barrel cooling | Water |
| Driving motor | 37kw |
| Cooling tank length | 1200mm |
| Seven Pre-heating roller | Dia. 215mm |
| Stretch oven | Carbon Steel welding |
| Heating power | 15kw |
| Five stretch roller | Dia. 215mm |
| Three cooling roller | Dia. 215mm |
| Calibrating box length | 4000mm |
| Three roller pulling | Dia. 215mm |
| Winding unit | Automatic winding |
| Total installation power | ~105kw |
| Machine dimension | 38000x1300x28000mm |
| Weight | 18ton |
Application :
PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.
Competitive Advantage:
1. CE ISO9001 Certificate
2. Old machine update
3. More than 15 years experience
