PVC Celuka Foam Board Making Machine , WPC Board Production Line , Plastic Board Extrusion Line
Quick detail:
1.WPC PVC furniture board extrusion machine is also names WPC PVC foam board extrusion machine, this machine adopts conical twin screw extruder.
2.Which can produce 1220mm width, 3-30mm thickness wpc pvc board. this wpc pvc board can be used in many fields.
Description:
1.It is composed of extruder, three-roller calender, traction,rewinding and electric control box.
2.The screw, material barrel, screenchanger, measurement pump, die head are made of high quality alloy steel (38CRMOAIA) with high hardness, strong corrosion resistance and long operating life after nitrogen treatment.
3.The die head adopts hanger-type branch pipe decreasing-style construction, so the flow passage is convenient for material solution to flow without stagnation and the thickness of products will be smooth and even.
4.Insiede the calender the helical flume and cycle water cooling bring a perfect cooling effect.
5.The temperatures of die head, screen changer the measurement pump and the material barrel are separately controlled.
6.All drive system runs synchronously.
Technical parameters:
| Product size | 1220mm width, length can cut at any length |
| Product thickness | 3-30m |
| Product application | Furniture board, kitchen cabinet, formwork |
| Density | 0.45-0.8ton/m3 |
| Finishing surface | Laminating, hot stamping, printing, painting, embossing |
| Production capacity | 400 kg per hour |
| Installation power | 300KW |
Application:
This WPC board making extrusion line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall
Machine advantages:
The lines have the advantages of well-planned layout, compact in structure, fine in performance such as homogenous plasticization, high output and long service life.

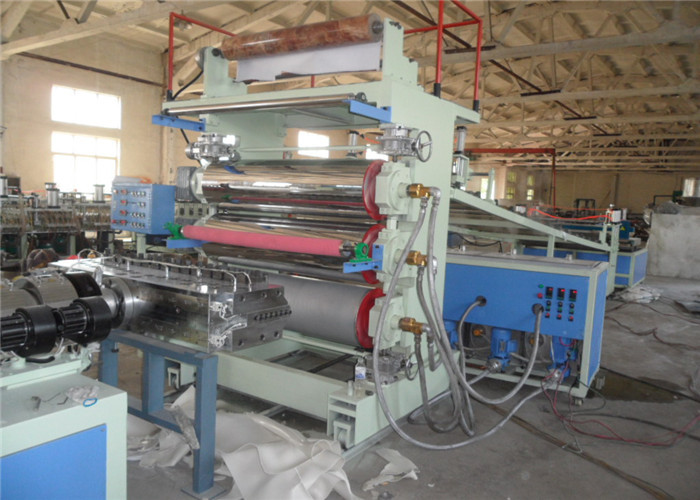

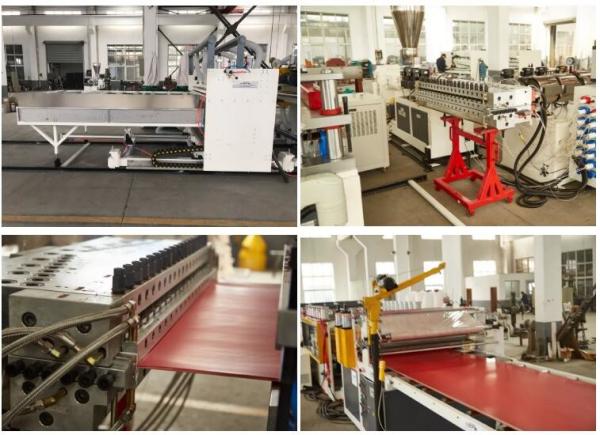

Machine display:
