UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

Brand Name : AORUI

Model Number : SJSZ65X132

Certification : CE Certificate

Place of Origin : China

MOQ : One set

Price : Negotiable

Payment Terms : 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping

Supply Ability : 10 Sets per month

Delivery Time : 35 days

Packaging Details : Fumigation wood, film,pallet,etc or according to customer’s requirement.

Machine type : pvc twin pipe production line

Condition : New

Screw design : twin screw extruder

Warranty time : 1 year

Automatic grade : Fully automatic

Motor brand : Siemens

Voltage : 380V 50HZ

Brand name : Aorui

Place of original : China

Contact Now

UPVC CPVC PVC Double Pipe Extrusion Line , PVC Double Pipe Making Machine With Double Screw Extruder

Quick detail:

1.The PVC pipe production line is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, and cable laying.
2.The unit consists of conical twin-screw extruder, mold, vacuum tank, haul-off machine, cutting machine, tracker and so on.


Description of pvc double pipe extrusion line:
1.Twin screw extruder
The machine is equipped with a quantitative feeding device to match the extrusion quantity and ensure the stable extrusion of the products.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder
2.Pipe Die Dead

apply bracket structure, each material flow channel is placed evenly.
Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

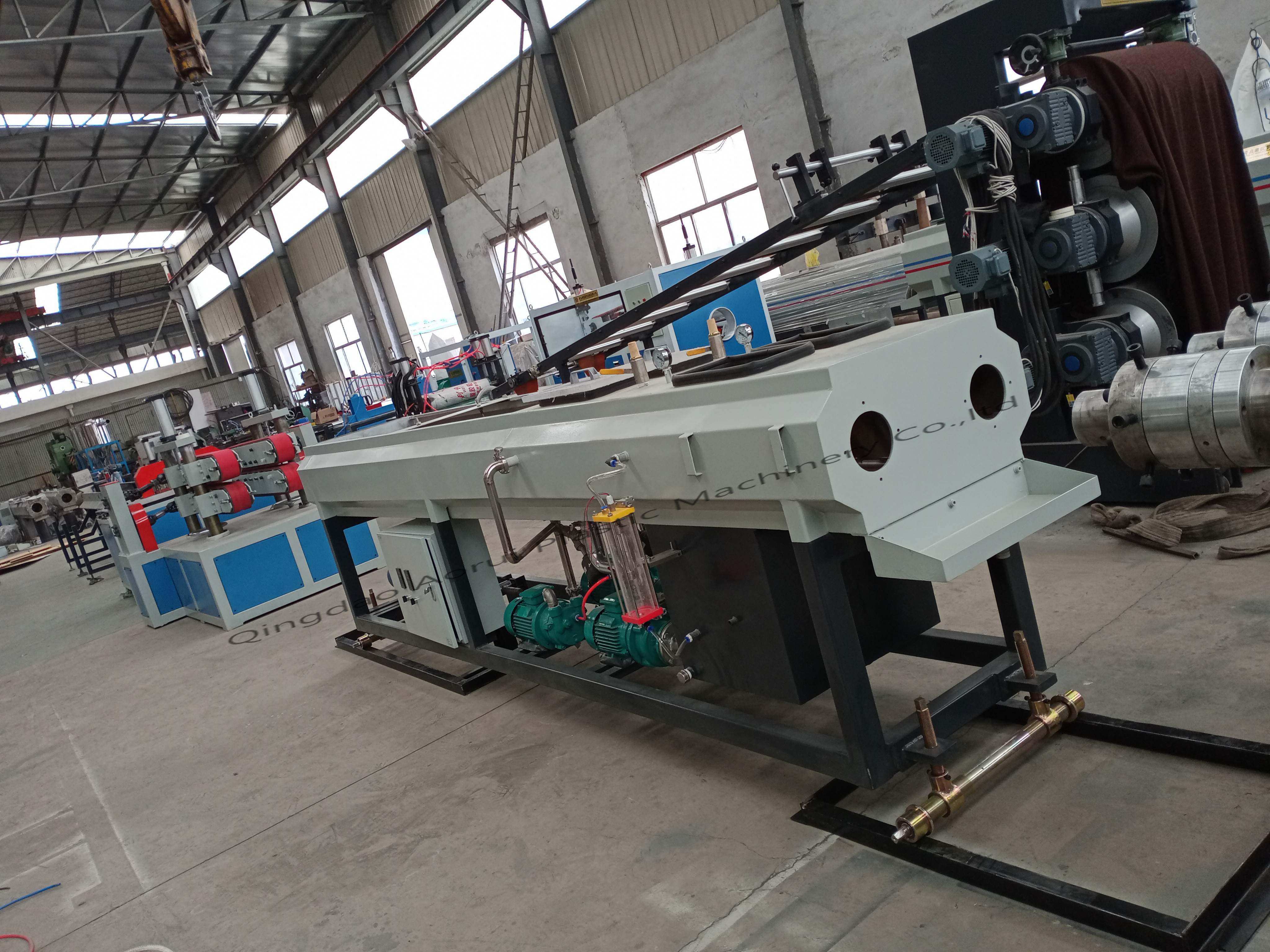

3.Vacuum CalibrationTank
used to shape and cool pipe, so as to reach standard pipe size.
We use double-chamberstructure.First chamber in short length, to ensure very strong cooling and vacuum function.
As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick
and better forming and coolingof pipe.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

4.Caterpillar Haul -off
Provides sufficient traction force to pull pipe stably.
According to different pipe sizes and thickness,our company will customize traction speed, number of claws, effective traction

length.To ensure matchpipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder
5.Double cutter
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

Technical parameter:

Diameter(mm) 16-40dual 20-63dual 20-63 75-200 160-315 315-630
Extruder mode SJZ51/105 SJZ65/132 SJZ51/105 SJZ65/132 SJZ80/156 SJZ92/188
Extruder power (kw) 18.5AC 37AC 18.5AC 37AC 55AC 110DC
Max lineal speed (m/min) 0.5-10 0.5-15 0.5-10 0.5-8 0.5-6 0.5-4
Max capacity (kg/h) 120 250 80-120 180-250 280-350 500-600
Installation area 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m


Machine Competitive Advantage:
Long service life
Easy to operate
